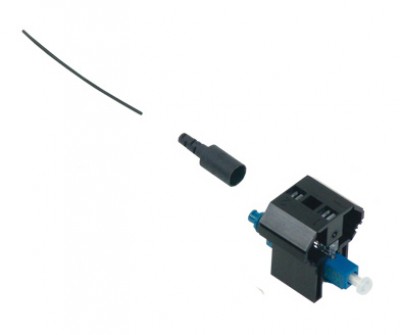

AFL's FAST-LC-SM FASTConnect Single-mode LC fiber optic connector is a factory pre-polished, field-installable connector that completely eliminates the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate, low loss termination onto single-mode optical fiber.
Connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination.
Incorporated into this connector is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.
- Single-mode UPC compatible
- Color: Blue
- No Epoxy, No Polish
- Low Insertion Loss
- Fiber Can Be Reinserted up to Three Times
- Cable Size: 900 μm
- Order 2mm or 3mm boots seperately
- Required cleave length: 10.5-11mm
FAST-LC-SM Spec Sheet
