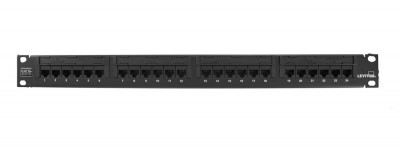

Leviton 5G596-U24 24 Port Gigamax Cat5e Patch Panel

Product Description

Leviton's 5G596-U24 24 port GigaMax™ Cat5e Patch Panel meets the needs of high-speed data applications. The 5G596-U24's GigaMax Cat5e connectors can be used for T568A or T568B wiring configurations. The 24 port 1 space panel mounts in standard 19" TIA equipment racks and accommodate top, bottom or side cable entry. The US Made, 24 port patch panel is UL Listed; meets National Electrical Code requirements and specifications for UL 1863, and fully comply with the latest published TIA guidelines.


  • 24 Cat5e Ports with 110 termination on rear of panel
  • Offers 1000BASE-T performance for high-bandwidth applications
  • Connector spring wire contacts are highest quality phosphor bronze, plated with 50 microinches gold over 100 microinches of nickel.
  • Universal printed circuit-board modules with 110 IDC punchdowns can be used for T568A and T568B wiring configurations.
  • Channel and Component rated
  • Color-coded front labeling for easy port identification
  • Grounding standoff for optional earthing/grounding
  • Includes 1 Cable Management Bar
  • 14 gauge steel panel
  • PCB and plastic components are rated UL 94V-0
  • Terminates 26-22 AWG solid conductors

Made in the USA


Dymo Rhino Connect Template for Leviton 24 port Patch Panel



Availability: Usually Ships Same Day

Part # Description Price Qty
5G596-U24 24 Port Universal Gigamax 5e Patch Panel each: $132.55
