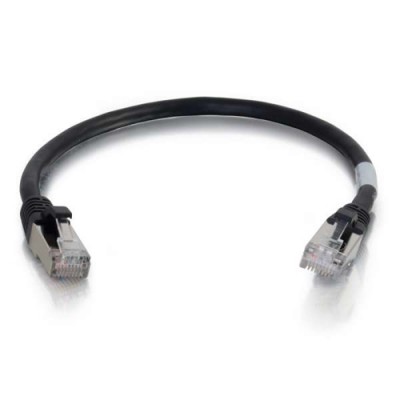

Shielded Cat6 Patch Cables

Product Description

Snagless Shielded Cat6 patch cable is designed for voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels.

  • Stranded Shielded Twisted Pair cable 26AWG - bare copper
  • Wiring scheme: 568B
  • ANSI/TIA 568 C.2 Cat6 component tested
  • Foil shield: Aluminum foil (100% coverage) + Braided shield: Copper braid (40% coverage)
  • PVC Jacket
  • RJ45 Male, Polycarbonate housing, Nickel plated for shielding
  • 50µm gold plated contacts

Availability: Usually Ships Same Day

Part # Description Price Qty
00810 Color Black, Length 3 ft each: 4.45
25+ : 3.68
00812 Color Black, Length 5 ft each: 4.70
25+ : 3.91
00814 Color Black, Length 7 ft each: 5.92
25+ : 4.93
00817 Color Black, Length 10 ft each: 7.90
25+ : 6.57
00819 Color Black, Length 14 ft each: 10.55
25+ : 8.78
