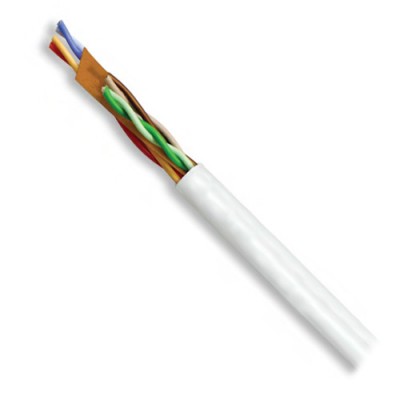

Superior Essex DataGain Cat6+ Cable CMP Plenum

Product Description

Superior Essex DataGain cable provides the best value in Category 6+ cables on the market today. The innovative design, which utilizes a tape separator, yields exceptional performance that exceeds TIA/EIA CAT 6 specifications. DataGain easily surpasses the performance of other cost-competitive CAT 6 cables. Contributes toward 1 LEED point under the Material and Resources credit (MRc)

Guaranteed electrical performance to 400 MHz
Guaranteed 5 dB margin in NEXT, PSNEXT, ELFEXT, PSELFEXT, ACR and PSACR
Round design with tape separator
Warranted with numerous connectivity manufacturers

  • 4 pair 23 awg Solid annealed copper - FEP insulation
  • Tested to 550 MHz / Guaranteed performance to 400 MHz
  • Flame retardant (FR) Low Smoke PVC Jacket
  • Meets ANSI/TIA-568-C.2 specification
  • “WideMouth” POP™ box design reduces tension on wire to ensure proper electrical performance after installation
  • CableID® alpha numeric code printed every 2 feet Aalows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
  • QuickCount marking system in feet and meters povides remaining length of cable on reel.
  • UL Verified CAT6
  • UL, c(UL) Listed CMP

Made in the USA

Availability: Usually Ships Same Day

Part # Description Price Qty
66-240-2B Jacket Color Blue, Length 1000 feet each: 439.00
66-240-5B Jacket Color Green, Length 1000 feet each: 439.00
66-240-3B Jacket Color Grey, Length 1000 feet each: 439.00
66-240-DB Jacket Color Orange, Length 1000 feet each: 439.00
66-240-4B Jacket Color White, Length 1000 feet each: 439.00
66-240-6B Jacket Color Yellow, Length 1000 feet each: 439.00
