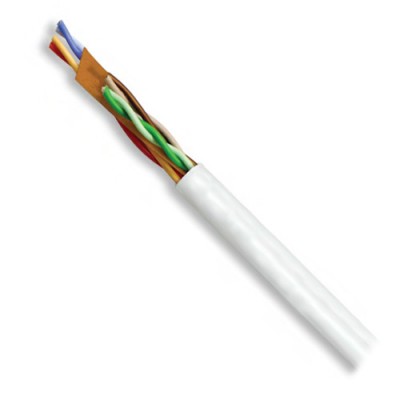

Superior Essex DataGain Cat6+ Cable CMR Riser

Product Description

Superior Essex DataGain cable provides the best value in Category 6+ cables on the market today. The innovative design, which utilizes a tape separator, yields exceptional performance that exceeds TIA/EIA CAT 6 specifications. DataGain easily surpasses the performance of other cost-competitive CAT 6 cables. Contributes toward 1 LEED point under the Material and Resources credit (MRc)

Guaranteed electrical performance to 400 MHz
Guaranteed 5 dB margin in NEXT, PSNEXT, ELFEXT, PSELFEXT, ACR and PSACR
Round design with tape separator
Warranted with numerous connectivity manufacturers

  • 4 pair 23 awg Solid annealed copper - Polyolefin insulation
  • Tested to 550 MHz / Guaranteed performance to 400 MHz
  • Flame retardant (FR) PVC Jacket
  • Meets ANSI/TIA-568-C.2 specification
  • “WideMouth” POP™ box design reduces tension on wire to ensure proper electrical performance after installation
  • CableID® alpha numeric code printed every 2 feet Aalows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
  • QuickCount marking system in feet and meters povides remaining length of cable on reel.
  • UL Verified CAT6
  • UL, c(UL) Listed CMR

Made in the USA

DataGain Cable Specs

Availability: Usually Ships Same Day

Part # Description Price Qty
66-240-2A Blue, 1000 feet each: $240.00
66-240-4A White, 1000 feet each: $240.00
66-240-6A Yellow, 1000 feet each: $240.00
