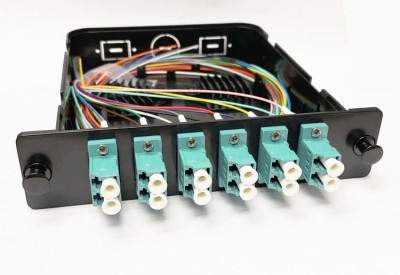

12 Fiber LC Pigtailed Splice Cassette - Multimode OM4

Product Description

12 Fiber LC OM4 Multimode Pigtailed Splice Cassette accommodates 12 multimode fiber interconnections in an industry-standard, single-slot LGX®118 footprint. These cost effective pigtailed splice cassettes come preloaded with 12 color coded LC pigtails that are pre-routed into their respective positions in the LC coupler panel. Pigtailed splice cassettes eliminate the need for individual splice trays and their modular design allows for access to fibers without disturbing other fibers within the fiber enclosure. Cassettes are shipped with an LC connector panel, 12 OM4 color coded fiber pigtails, splice sleeve holder, cable grommet and splice protectotion sleeves.

  • LGX 118 compatible
  • Organized fiber routing
  • Reduces labor in the field
  • Includes splice module, loaded adapter panel, pigtails, splice holder and splice protection sleeves.

Connector Type: LC
Fiber Count: 12
Fiber Type: Multimode OM4
Fiber Arrangement: Single

Availability: Usually Ships Same Day

Part # Price Qty
PSM12LCA each: $99.00
