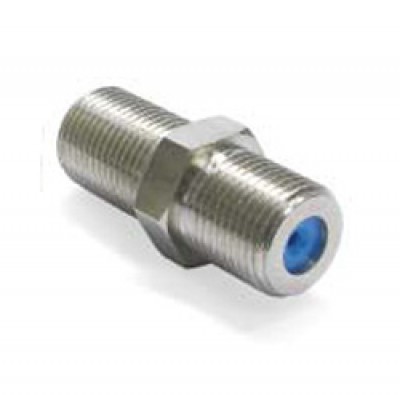

3GHz High Performance F81 Female Splice Adapter

Product Description

PPC's CF81GHZM F female splice adapters offer superior corrosion resistance and weather sealing capability. The Gold plated Beryllium Copper 4-point center conductor contact provides superior conductivity, connection repeatability and corrosion resistance.

  • Nickel-plated brass construction
  • Gold-plated Beryllium Copper for maximum conductivity, connection repeatibility and corrosion resistance
  • Four-point contact eliminates common path distortion
  • Flat port interface surface ensures maximum ground plane engagement
Bandwidth Return Loss Insertion Loss
0 GHz to 2 GHz > 30 dB < .05 dB
2 GHz to 3 GHz > 25 dB < .10 dB

Availability: Usually Ships Same Day

Part # Description Price Qty
CF81GHZM-100 3GHz High Performance F81 Splice - 100 pack each: $39.00
