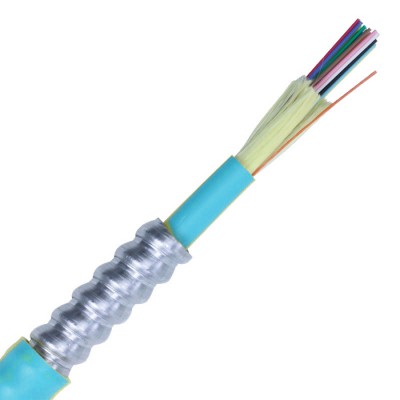

AFL's CP006C441C01-AIAP Armored Tight Buffer Circular Premise Cable incorporates 6 OM4 Fiber strands in a UL listed, jacketed, aluminum interlocking armor cable. Jacketed aluminum interlocking armor provides the best balance of ruggedness, flexibility, and low weight. Buffered to 900 µm, these cables can be directly terminated into connectors in loaded panels or in communications closets.
- Routing inside of buildings where additional ruggedness is required or where increased rodent resistance is required
- Extra protection for fiber optic cables in harsh industrial environments
- Manufacturing Plants
Fiber: 50um Multimode OM4 Tight Buffer
Fiber Count: 6
Max Attenuation: 3.0/1.2 dB/Km
10Gb Min Link Length: 550 meters
Cable Type: Premise Cable/Distribution
Flame Rating: Plenum OFNP
Jacket Color: Aqua
Nominal Diameter: .46"
Bend Radius: 7.0" install / 5.0" long term
Operating Temperature:0C to +70C
AFL CP006C441C01-AIAP Armored Tight Buffer Circular Premise Cable Spec Sheet
