Product Description

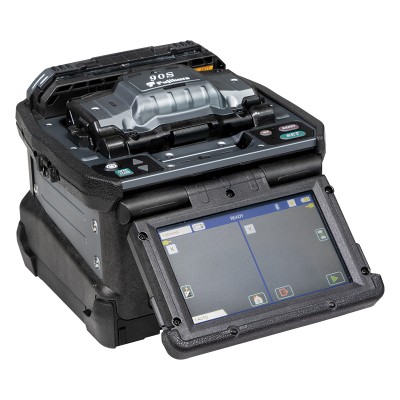

The AFL 90S+ fusion splicer is the latest core alignment splicer from AFL/Fujikura. It is designed to give you high quality splices and to stay in the field. The 90S kit solves common problems seen in the field today, from splicing poor quality legacy fiber to automated equipment maintenance and upkeep.The 90S+ can be utilized in any field splicing application seen today: bend-insensitive fibers in drop cables, long-haul terrestrial and submarine LEAF fibers, loose buffer fiber, splice on connectors, and the list goes on. The speed and accuracy of the 90S+ even make it suitable for certain production and specialty environments, where high output, tight packaging, and low loss requirements are needed.
Regardless your scenario, the 90S+ is designed to keep you going with an extended battery life of 300 splice and heat cycles, and by alleviating the need for traditional operation tasks such as; frequent arc calibrations, cleaver blade rotations, cleaver usage tracking, and manual splicing operations with its multiple automated and ease-of-use features. A redesigned work tray and cooling tray, make the S017521 90S+ KIT more versatile than any of its predecessors in adapting to varying work conditions and environments
When splicing loose buffer fiber, additional sheath clamps are not needed. The standard universal sheath clamp now handles both loose and tight buffer fibers. The new Active Fusion Control (AFC) technology improves splice losses for fibers that possess a poor cleave angle. Combined with Active Blade Management between the splicer and cleaver, the Fujikura 90S+ contains a robust set of splicing features that will reduce the likelihood of poor splice installations or repairs.
- Cleaver tracking and upkeep with wireless communication
- Improved real-time arc control for fibers with poor cleave angles
- Automated wind protector, sheath clamps and splice operation
- Loose and tight buffer with same sheath clamp
- Lithium-ion battery with 300 splices/shrinks per charge
- Graphical User Interface with 5.0" Touchscreen
- PC software and 90S manual downloaded from splicer
- Multi-function transit case with integrated workstation
Model S017521 90S+ fusion splicer kit with cleaver, battery and cord includes:
- 90S+ Fusion Splicer
- CT50 Cleaver
- Sheath Clamps
- SP-03 Fiber Holder Set
- BTR-15 Battery
- DCC-18 Battery Charge Cord
- ADC-20 AC Adapter
- ACC-14 AC Cord
- ELCT2-16B Spare Electrodes (pair)
- SS03 Single Fiber Stripper
- Alcohol Dispenser
- Screwdriver
- USB Cable
- TS-03 Tripod Screw
- Slicer Carrying Strap
- Video Instruction Manual
- CC39 Transit Case with Carrying Strap
AFL 90S Fusion Splicer Spec Sheet
AFL Fujikura 90S Fusion Splicer Video
Call or email for pricing
