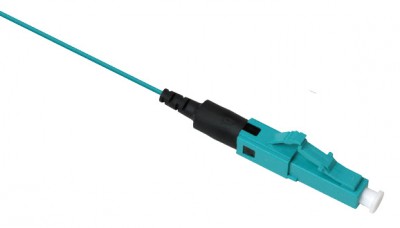

AFL FUSEConnect FUSE-LC9M50L-6 OM3/OM4 Multimode LC/PC Splice-On Fiber Connector

Product Description

AFL’s FUSE-LC9M50L-6 Multimode LC/PC FUSEConnect fusion-splice connectors offer improved optical performance, and reliability over mechanical connectors at only a marginal cost increase.

AFL FUSEConnect Splice-On connectors utilize a fusion splicer to terminate the connector in the field, addressing return loss concerns present in analog optical networks. The factory pre-polished ferrule eliminates the need for polishing, adhesives, and crimping in the field, which minimizes the potential for operator error and expensive connector scrap.

FUSEConnect is compatible with Fujikura fusion splicers and most other fiber holder-based fusion splicing platforms.

  • Connector: LC/PC 50um OM3/OM4 Laser Optimized Multimode
  • Color: Aqua
  • Cable type: 900um
  • Insertion Loss:  0.10 dB (average), 0.3 dB (maximum)
  • Return Loss:  ≤ -35dB

Qty pack:6

FuseConnect Spec Sheet

Availability: Usually Ships Same Day

Part # Description Price Qty
FUSE-LC9M50L-6 LC, Multimode OM3/OM4, 6 pack each: $75.00
20+ : 69.50
