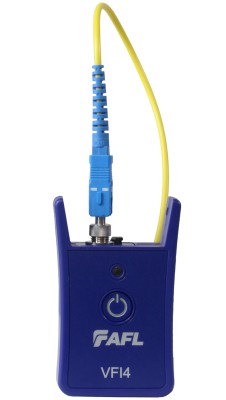

AFL VFI4 Visual Fault Identifier

Product Description

AFL’s compact VFI4 injects high-powered red-laser light to provide exceptional brightness and range for locating defects in single-mode and multimode fibers. The light generated by these units will escape from sharp bends and breaks in jacketed or bare fibers, as well as poorly mated connectors enabling technicians to quickly spot faults. The universal connector interface mates with many connector styles without needing an adapter.

Rugged and Compact: The rugged VFI4 is designed for the rigors of real-life field testing. It has a range of up to 10 km, fits on a keychain, and features extensions that protect the red-laser port. It has both CW and pulsating modes and is powered by a single AA battery for up to 30 hours of operation.

Installation and Activation: VFI4 is used for quick continuity checks, fiber tracing, splice verification, and Pass/Fail validation for mechanical connectors. VFI4 is also an excellent complement to any OTDR because it can locate faults inside the OTDR’s dead zone.

Essential Troubleshooting Tool: The VFI4 highlights sharp bends, breaks, faulty connectors, and other defects that “leak” light. Other applications include end-to-end continuity checks, as well as identifying connectors in patch panels and fibers during splicing operations.


Applications:
Identify fiber faults within OTDR deadzones
Identify sharp bends or breaks in fibers
Identify poorly mated connectors
Verify integrity of AFL FAST™ Connector installation

  • Wavelength: 650 nm +/-15 nm
  • Output power of 5.0 mW with 10 km range
  • Universal connector interface for quick connection - 2.5 mm adapter accepts FC, SC, ST, connectors - 1.25 mm adapter accepts LC and MU connectors.
  • Eye-safe Class 3R visible red laser source, 650 nm
  • Key-chain sized- 3.0" x 2.1" x 0.9"
  • Uses one AAA Battery
  • Includes: 2.5mm universal adapter and 1.25mm universal adapter

AFL VFI4 spec sheet

Availability: Usually Ships Same Day

Part # Price Qty
VFI4-01-0900PR each: $149.00
