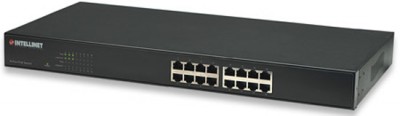

Intellinet 503631 16 port 10/100Base-TX PoE Switch

Product Description

Intellinet's 503631 16 port 10/100Base-TX PoE Office Switch supports 802.3af Power over Ethernet (PoE) all 16 jacks. The Class 3 design of this switch ensures that the full power of 15.4 Watts is available on all 16 ports simultaneously. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables when connecting to another switch. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance.

  • 10/100 auto-sensing ports automatically detect optimal network speeds
  • All RJ-45 ports with Auto-MDIX and NWay auto-negotiation support
  • IEEE 802.3af-compliant RJ-45 PSE/PoE output ports
  • Full-power Class 3 PoE design
  • Power output up to 15.4 Watts per port
  • Store and forward switching architecture
  • Full/half duplex operation
  • Supports 4096 MAC address entries
  • 200 kBytes buffer memory
  • 19 in. rackmount metal case
  • LEDs for power, link/activity and PoE

503631 Data Sheet


Limited to stock on hand

Availability: Usually Ships Same Day

Part # Price Qty
503631 each: $169.00
