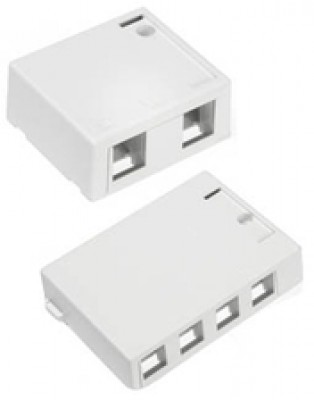

Leviton 41089 series QuickPort Surface Mount Boxes

Product Description

Leviton Quickport Surface Mount Boxes are easily field configurable with Leviton QuickPort Connectors as well as other keystone style connectors and jacks.The 2 port version comes with a blank filler to cover and protect an unused opening. The 4 and 6 port port housings are sized to completely cover a single gang NEMA wallbox opening. Housings contain knockouts to accommodate raceway and cable entry.Port identification can be accomplished in two ways; use different color QuickPort modules or type or hand write a descriptive label for the designation window. All designation windows are field-label compatible, and cover a security screw to keep the wallplate in place.

  • One and two-port housings comply with UL 2043 and rated for use in air handling spaces (plenum) per NEC 300-22(b)(c).
  • Compatible with all Leviton QuickPort modules and other keystone style connectors
  • Constructed of High-impact, fire-retardant plastic rated UL 94V-0
  • Designation label provided for identification purposes
  • Includes two self-tapping screws and pressure-sensitive adhesive
  • UL listed, and compliant with NEC Article 800.

Availability: Usually Ships Same Day

Part # Description Price Qty
41089-1EP 1 port - Black each: $2.00
41089-1GP 1 port - Grey each: $2.00
41089-1IP 1 port - Ivory each: $2.00
41089-1WP 1 port - White each: $2.00
41089-2EP 2 port - Black each: $2.15
41089-2GP 2 port - Grey each: $2.15
41089-2IP 2 port - Ivory each: $2.15
41089-2WP 2 port - White each: $2.15
41089-4EP 4 port - Black each: $4.05
41089-4IP 4 port - Ivory each: $4.05
41089-4WP 4 port - White each: $4.05
41089-6EP 6 port - Black each: $7.00
41089-6GP 6 port - Grey each: $7.00
41089-6WP 6 port - White each: $7.00
