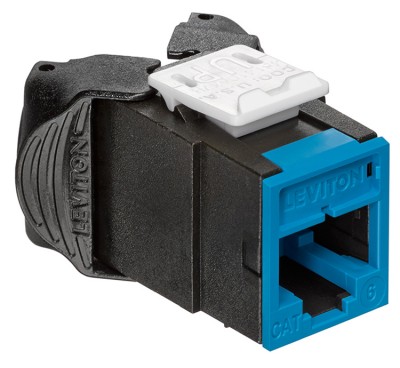

Leviton Atlas-X1 Cat 6 UTP QuickPort Jack

Product Description

Leviton 61UJK-R*6 Atlas-X1 Cat 6 Component-Rated UTP QuickPort Jackssupport 1000BASE-T networks. The jack is part of a complete Atlas-X1 Cat 6 UTP system, ideal for the most demanding mission-critical network applications. The jack supports emerging technologies and will easily adapt to network trends.

  • Independently tested and guaranteed to exceed all component, permanent link, and channel margins
  • Tine geometry prevents arcing damage where plug and jack make contact
  • Patented Retention Force Technology™ (RFT) protects against tine damage and increases system longevity
  • For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects
  • Unique design supports tool-free termination/re-termination and requires no specialized termination tool
  • Short jack design supports a wider range of applications(e.g. shallow boxes, enclosures, bend radius, etc.)
  • Terminates from 26 to 22 AWG solid or stranded conductors for use on various cable types
  • Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity
  • Available in 13 ANSI/TIA-606-C compatible colors
  • Solid metal body dissipates 53% more heat than traditional plastic, minimizing damage from excess heat inPoE applications
  • Will exceed IEEE 802.3bt standard up to 0.5 amps perconductor (100 watts) continuously
  • ETL verified to meet the IEC 60512-99-002 standard forsupport of IEEE 802.3bt Type 4 PoE (90-watt) applications=

STANDARDS & REGULATIONS

  • ANSI/TIA-568.2-D (Cat 6)
  • ISO/IEC 11801-1 (Cat 6)• EN 5017301 (Cat 6)
  • ANSI/TIA-1096-A (formerly FCC Part 68)
  • cULus Listed (UL 1863)
  • UL 2043 Plenum Certified
  • IEC 60603-7 (includes IEC 60512-5-2)
  • IEC 60512-99-002
  • IEEE 802.3bt PoE Type 1 (15.4 Watts) formerly 802.3af,Type 2 (30 Watts) formerly 802.3at, Type 3 (60 Watts),Type 4 (90 Watts)
  • Cisco UPoE (60 Watts), UPoE+ (90 Watts)


Availability: Usually Ships Same Day

Part # Description Price Qty
61UJK-RE6 Black each: $9.55
61UJK-RL6 Blue each: $9.55
61UJK-RW6 White each: $9.55
61UJK-RY6 yellow each: $9.55
