Product Description

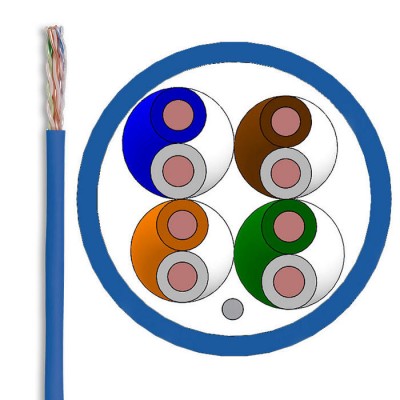

Leviton Berk-Tek LANMARK-6 CAT6 cable features a reduced diameter compared to other Category 6 UTP cables. This is an ETL Category 6 verified cable, constructed without the center spline for easy installation and termination. LANMARK-6 is capable of transmitting applications such as 1000BASE-T. It is ideal for network applications that extend to 250 MHz. LANMARK-6 is conforms to ANSI/TIA-568.2-D Category 6 and ISO/IEC 11801 2nd Edition Class E Category 6 requirements.
May be installed in air-handling ducts and plenums without conduit in accordance with the National Electrical Code (NFPA 70) and the National Building Code of Canada
Provides Category 6 performance
Cost effective Category 6 solution
Provides additional usable bandwidth required for future applications
Superior box design allows cable to be pulled easily from the box with minimum kinking
Compact box design takes up less shelf space
Max bundle size for 100 W PoE is 240 cables
Clearly identified packaging eliminates potential confusion
Unique ID in print legend allows cable to be traced without additional equipment
FEATURES
- Cost effective, compact design
- Characterized to 500 MHz, 250 MHz greater than the standard
- Jacketed with flame-retardant polymer
- Third-party verified Cat 6 performance
STANDARDS & REGULATIONS
- ANSI/TIA 568.2-D
- ISO/IEC 11801
- IEEE 802.3 PoE Type 1, 2, 3, 4 (100 watts max)
- Cisco UPOE, UPOE+ (90 watts max)
- Power over HDBaseT™ PoH (95 watts max)
- UL 444
- RoHS Compliant (EU Directive 2011/65/EU (RoHS))
FIRE RATING
- Plenum - NFPA 262
- CMP - Plenum Rated
