Product Description

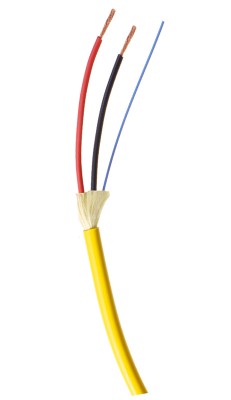

OCC's CA003SPDC9YP is a small diameter 1 x singlemode fiber, 2 x 16awg copper hybrid cable. This cable is thinner, lighter, and more flexible than other hybrid cables on the market. Perfect for Passive Optical LAN installations, the Hybrid Slimline-Plenum can also offer additional protection in high traffic indoor applications.

Specifically designed for Passive Optical LAN installations that utilize a centralized power supply to power end terminals (ONTs).

Two copper wires provide power from a centralized power supply to POL ONTs while single-mode fiber optic element provides a data path through the cable.

Hybrid fiber/copper cables are intended for use on Class 2 power-limited circuits as described in Article 725 of the National Electrical Code.

• Cable consists of individual insulated copper conductors and optical fibers located in a radially symmetrical pattern.
• Cable also includes aramid yarn for installation tensile loading.
• The indoor plenum jacket is tubed-on to allow for easy removal of the jacket during termination without the need for a ripcord.
• Cable includes two copper (red/black) 16 guage conductors and 1 Singlemode (G657B.3) 900um fiber

Availability: Usually Ships Same Day
