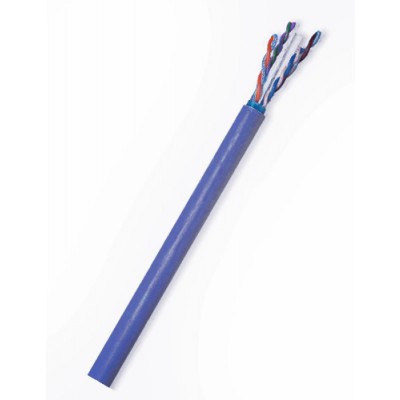

Superior Essex 10Gain® XP Cat6A Cable - Plenum

Product Description

Superior Essex 10Gain® XP Cat6A cable offers 7 dB margin over Alien Crosstalk (AXT) performance requirements in ANSI/TIA-568-C.2. Its uniquely designed Isolation Wrap contains discontinuous sections of metallized material, held in place by a polymeric layer. 10Gain XP has a nominal 0.265" (CMP) diameter that allows for higher cable density than other CAT 6A cable products. 10Gain XP is ideal for PoE applications requiring higher levels of current and simultaneously up to 10 Gigabit Ethernet. 10Gain XP is certified for HD A/V applications using HDBaseT Class A and B protocol.

  • 23AWG conductors, solid annealed copper- FEP insulation
  • PVC Jacket  - Flame retardant (FR) Low Smoke PVC
  • Nominal OD - .265"
  • UL Verified CAT6A
  • UL, c(UL) Listed CMP
  • 10BASE-T through 10GBASE-T Ethernet
  • Power over Ethernet (PoE) – IEEE 802.3af
  • PoE+ – IEEE 802.3at Type 1 and 2
  • 4PPoE+ - IEEE 802.3bt Type 3 and 4 draft D1.2
  • Non-conductive Isolation Wrap allows for 7 dB AXT performance without grounding or bonding
  • Tested to 650 MHz
  • CableID® alpha numeric code printed every 2 feet
  • Tested up to 100 W in most severe temperature conditions in a bundle of 100 cables
  • HDBaseT Class A and B certified
  • UL LP listed
  • Made in the USA

Superior Essex 10Gain® XP Cat6A Spec Sheet

Availability: Usually Ships Same Day

Part # Description Price Qty
6H-246-2B Blue Jacket, 1000ft BrakeBox each: $700.00
6H-272-4B White Jacket, 1000ft reel each: $700.00
