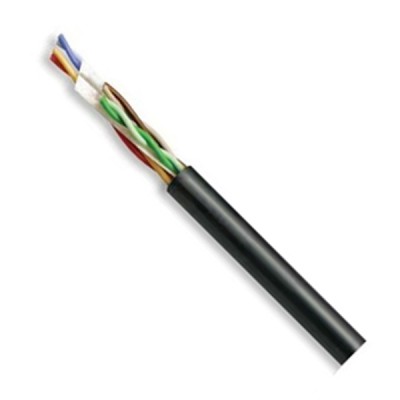

Superior Essex 77-246-E1 Cat6 CMR/CMX Outdoor, Sunlight Resistant Cable

Product Description

Superior Essex 77-246-E1 Cat6 CMR/CMX Outdoor Sunlight Resistant cable is specifically designed for extreme sunlight and temperature applications. The level of UV blocking compounds is the same as in traditional Outside Plant (OSP) cable products, with the black color preventing damage from long-term UV sunlight exposure. Applications include ethernet interconnect cable for Wi-Fi or retrofit cable installations that employ exterior runs having long-term outdoor exposure between two environmentally protected points. CMX Outdoor cables are designed to extend the run between the Network Interface Unit and the point of entry into the interior of a premise. Superior Essex CAT 6 CMR/CMX Outdoor Sunlight Resistant black premises cable has been tested and listed as UL® 444 Sunlight Resistant compliant. This designation requires the cable to resist 720 hours of harsh UV and heat, which is more than twice the exposure time of the standard 300 hours required in the CMX Outdoor test. In addition, the CMR listing allows the cable to be used in riser spaces per UL 1666,eliminating the need to transition to fire resistant cables.

  • 4 pair 23 awg Solid annealed copper - Polyolefin insulation
  • Jacket: Tough, flame retardant, weather, sunlight and abrasion resistant riser PVC
  • Tested to 250 MHz / Typical performance to 550 MHz
  • Meets ANSI/TIA-568.2-D specification
  • “WideMouth” POP™ box design reduces tension on wire to ensure proper electrical performance after installation
  • CableID® alpha numeric code printed every 2 feet allows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
  • QuickCount marking system in feet and meters provides remaining length of cable on reel.
  • 10BASE-T through 1000BASE-T Ethernet
  • Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4
  • UL Verified CAT6
  • UL, c(UL) Listed CMR
  • UL, c(UL) Listed CMX
  • Operating Temperature: -40°F to +167°F

Do not use as a substitute for Outside Plant (OSP) cables.

Do not use in buried conduit or direct burial which can flood. These cables are not designed for extended exposure to water.


Data Sheet: 77-246-E1 Cat6 CMR/CMX Outdoor Sunlight Resistant Cable

Availability: Usually Ships Same Day

Part # Price Qty
77-246-E1 each: $339.00
