Product Description

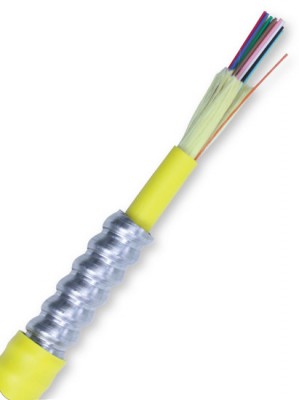

Superior Essex L4012K401 12 strand Singlemode Interlock Armored Optical Fiber Cable provides an extremely well protected cable package ideally suited for mechanically challenging environments. This plenum rated cable features a flexible, heavy duty interlocking aluminum armor helically applied over the inner cable core; further protection is provided by an optional flame retardant outer jacket. This design offers the system designer a product that can be installed in areas where added mechanical protection and security are required. The flexible interlock armored cable design is also popular for retrofit applications and eliminates the need to install rigid conduit while still meeting building code guidelines.
- Intrabuilding backbones
- Conduit pathways
- Service entrance to communication closets
Fiber: 9um Singlemode, G657.A1, 900 μm tight buffered fibers
Fiber Count: 12
Wavelength: 1310nm/1550nm
Typical Attenuation: 1310nm 3.5dB, 1550nm 1.5dB
Max Attenuation: 1310nm .41dB, 1550nm .41dB
Environment: Indoor
Cable Type: Premise Cable/Distribution
Flame Rating: Plenum OFNP
Jacket Color: Yellow
Nominal Diameter: .55"
Minimum Bend Radius: Installation 8.2", Long Term 5.5"
Operating Temperature: -0C to +75C
