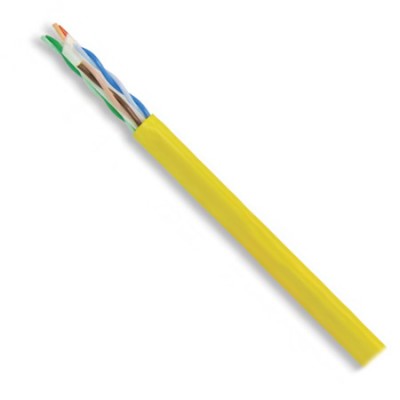

Superior Essex NextGain Cat6eX Cable CMR Riser

Product Description

Superior Essex NextGain Category 6eX cable brings UTP performance to a new level. Guaranteed for 7 dB of margin (headroom) over base requirements of CAT 6 NEXT standards, this cable maximizes bandwidth for today’s leading edge applications and those of the future. With positive ACR verified beyond 300 MHz, NextGain CAT 6eX cable demonstrates superior capability for ATM, Gigabit Ethernet and other bandwidth intensive applications. Contributes toward 1 LEED point under the Material and Resources credit (MRc)

Exceptional performance over CAT 6 requirements
Guaranteed NEXT of 7 dB greater than CAT 6 requirements
Guaranteed ACR of 30 dB at 100 MHz and 11.7 dB at 250 MHz

  • 4 pair 23 awg Solid annealed copper - Polyolefin insulation
  • Tested to 650 MHz / Guaranteed performance to 550 MHz
  • Flame retardant (FR) PVC Jacket
  • Meets ANSI/TIA-568-C.2 specification
  • BrakeBox® payout control system
  • CableID® alpha numeric code printed every 2 feet allows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
  • QuickCount marking system in feet and meters povides remaining length of cable on reel.
  • UL Verified CAT6
  • UL, c(UL) Listed CMR

Made in the USA

NextGain Category 6eX Spec Sheet

Availability: Usually Ships Same Day

Part # Description Price Qty
54-246-2A Jacket Color Blue, Length 1000 feet each: $280.00
54-246-5A Jacket Color Green, Length 1000 feet each: $280.00
54-246-3A Jacket Color Grey, Length 1000 feet each: $280.00
54-246-7A Jacket Color Purple, Length 1000 feet each: $280.00
54-246-4A Jacket Color White, Length 1000 feet each: $280.00
54-246-6A Jacket Color Yellow, Length 1000 feet each: $280.00
