WBTFORM Polymer Cable Tray Insert

Product Description

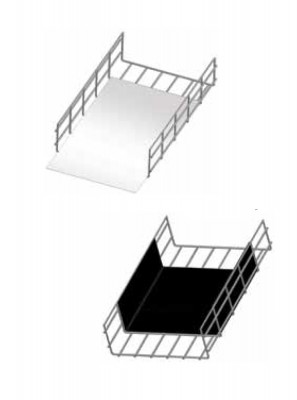

WBTFORM Polymer Cable Tray Insert utilizes flame retardant polymer for use in creating tray inserts and covers. WBTFORM allows you to configure the material as a tray liner or insert, with the option of a flat bottom, or prescored to the tray depth for coverage of the bottom and sides.

WBTFORM can even be utilized to envelop the entire tray, providing bottom, side and cover protection. WBTFORM is easily configurable into a variety of solutions from the simple to creative.

  • Thickness .017"
  • UL 94V-0 Flame Class Rating.
  • RoHS compliant.
  • Non-hydroscopic (moisture absorption
  • Temperature range to 115°C/239°F.
  • Easily field configurable.
  • Available in white or black

WBTFORM data sheet


Contact us for project pricing. We can can help with BOM creation and design assistance

Availability: Usually Ships Same Day

Part # Description Price Qty
WBTFORM12 Bottom Insert, 12" wide, 100ft roll, Black each: 450.00
WBTFORM18 Bottom Insert, 18" wide, 100ft roll, Black each: 600.00
WBTFORM4X12 Bottom Insert with Sides, 12" wide, 100ft roll, Black each: 670.00
WBTFORM4X12WH Bottom Insert with Sides, 12" wide, 100ft roll, White each: 670.00
WBTFORM4X18 Bottom Insert with Sides, 18" wide, 100ft roll, Black each: 800.00
WBTFORM4X18WH Bottom Insert with Sides, 18" wide, 100ft roll, White each: 800.00
