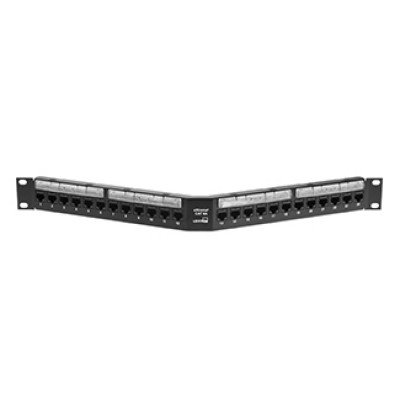

Leviton 6A587-U24 24 port eXtreme Cat6A 10Gig Angled Patch Panel

Product Description

Leviton's 6A587-U24 24 port Cat6A 10Gig Angled Patch Panel exceeds all component performance requirements in the ANSI/TIA-568-C.2 standard, and the Class EA component requirements for the ISO 11801 standard from 1 MHz to 500 MHz to support the IEEE 802.3an standard for 10GBASE-T network performance. Patch panels feature industry-standard in-line IDCs and are component rated, which provides greater Cat6A performance margins in link and channel field testing. Features include conductor retention and pair separation towers designed specifically for large conductor size in Cat 6A cable. the 6A587-U24 incorporates a triple-stage compensation design with integrated flexible circuit to enhance permanent link and channel performance.Circuit board design incorporates an isolation gap to minimize alien crosstalk.

  • Independently tested and verified by Intertek (ETL) for Cat 6A component performance
  • In-line IDC field is consistent with traditional 4-pair 110-style IDC terminations flexible circuit enhances link and channel performance
  • Patented isolation gap on circuit board minimizes alien crosstalk between ports
  • Conductor retention feature holds individual conductors in place during termination
  • Pair Separation Towers facilitate separation of Cat 6A conductors
  • Separated blocks provide room to work with larger Cat 6A cables and help to identify first-pair position
  • Terminates up to 50% faster than Cat6A panels requiring an additional termination manager
  • Reversible card shows T568 A and B wiring schemes separately
  • IDC stuffer caps provide termination strain relief
  • Angled design facilitates proper bend radius and conserves rack space by routing cords directly into vertical cable management
  • Magnifying label holders adjacent to connectors
  • One cable management bar included per row
  • Made in the USA



Standards Compliance:
ANSI/TIA 568-C.2 component requirements for connecting hardware from 1 MHz to 500 MHz
ISO 11801 Class E
cULus listed
ANSI/TIA-1096-A
IEEE 802.3an to support 10GBASE-T networks
IEEE 802.3at (Type 1) Power over Ethernet (PoE) applications up to 15.4 watts
IEEE 802.3at (Type 2) Power over Ethernet (PoE+) applications up to 30 watts
IEEE Draft 802.3bt/D1.2 (Type 3) Power over Ethernet (PoE+) applications up to 60 watts
IEEE Draft 802.3bt/D1.2 (Type 4) Power over Ethernet (PoE+) applications up to 100 watts
Cisco Universal Power Over Ethernet (UPOE) applications up to 60 watts
Power over HDBaseTTM (POH) applications up to 100 watts



Leviton  6A587-U24 24 port Cat6A 10Gig Angled Patch Panel Spec Sheet

Availability: Usually Ships Same Day

Part # Price Qty
6A587-U24 each: $382.06
